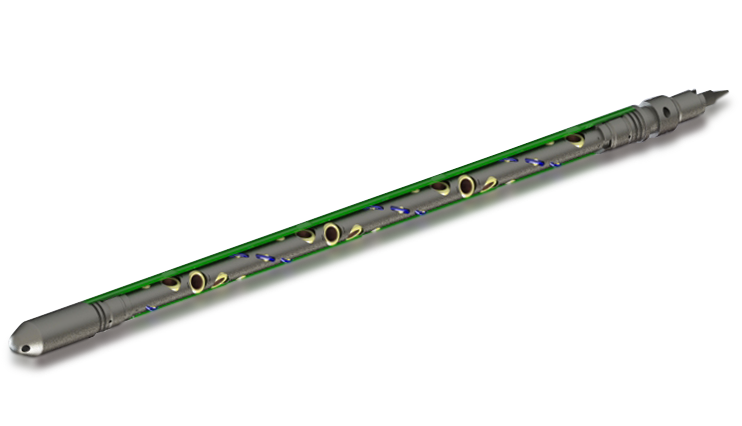

Capsule-type expendable perforation system PKO 63-AT
DownloadCharacteristics | PKO 63-AT | |
---|---|---|
Perforation density, holes/m | 12, 16, 20 | |
Outer diameter, mm | 63,5 | |
Max temperature, C | 150/200 |
JSC “BVT” sells perforation systems PKO 63-AT for BPO (blast and perforation operations) at oil and gas fields. The device is designed for a single use: it is run into wells (including those filled with water) on a wireline or tubing to perform secondary drilling of productive formations.
Advantages of PKO 63-AT perforation systems:
- the perforating gun is easy to prepare for operation;
- increased penetrative power;
- compatibility with different charges for various perforation operations;
- multiple-unit assembly is allowed in case of the subsequent descent of the perforation system on a wireline with the detonator fastened to the bottom of the device;
- design reliability;
- field-proven safety in operation.
Perforation systems have an outer diameter of 63.5 mm. The maximum operational temperature is 150/200 degrees. Phasing from 0° to 180° is available upon the customer’s request.
* - phasing 00, 450, 900,1800 is available upon the Customer’s request
** - other density is available upon the Customer’s request
*** - ID can be produced according to the special order
**** - other lengths are available upon the Customer’s request
***** - outer diameter of the string:
102 mm - 5°
114 mm - 6°
120 mm - 7°
127 mm - 8°
140 mm - 8°
146 mm - 8°
168 mm - 8°
178 mm - 8°
194 mm - 8°
219 mm - 8°
245 mm - 8°
