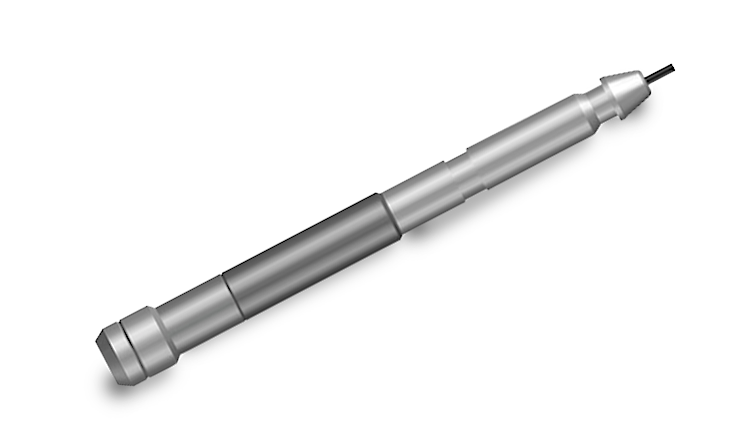

Jet pipe cutter TK-C
DownloadPurpose
The device is designed for cutting tubing, casing and drilling (external upset) pipes in wells. The device is conveyed on a logging cable. The pipe cutter is initiated by a PGN-150 explosive cartridge.
Characteristics | TK-C44 | TK-C54 | TK-C67 | TK-C108 | TK-C108 TK-C115 | |
---|---|---|---|---|---|---|
Max allowable pressure at hold time of 6 hours, °С | 150 | 150 | 50 | 150 | 150 |
The equipment is designed for cutting pipes in wells. Tubing, casing, and drill pipes are cut. Due to the high pressure of the blast wave, the TK-C pipe cutter provides an even cut of the pipe without its deformation. The equipment is initiated by an explosive cartridge. The equipment is conveyed into the wells on a logging cable.
Specifications and advantages:
- effective cutting of any types of pipes used in wells;
- acceleration of production, cost and time savings at oil, gas and condensate fields;
- reliable engineering design;
- high level of security;
- trouble-free operating principle;
- a wide range of standard sizes depending on the type and diameter of pipes;
- the outer diameter of the pipe cutters varies from 44 to 115 mm;
- nominal diameter of pipes for work: from 60 to 146 mm;
- maximum allowable pressure in pipes: 80 MPa;
- temperature limits (at hold time of 6 hours): 150 ° C.
The charge weight depends on the size of the pipe cutter and varies from 11 to 102 g.
